Brick paving
This tile is based on large and small brick format and is produced in three colour variants (ORANGE, RUBY, OKR). It is used both in parquet arrangement and in tread or modular installation.
Types of laying
Modular laying
Parquet laying
Tread laying
Colour variations

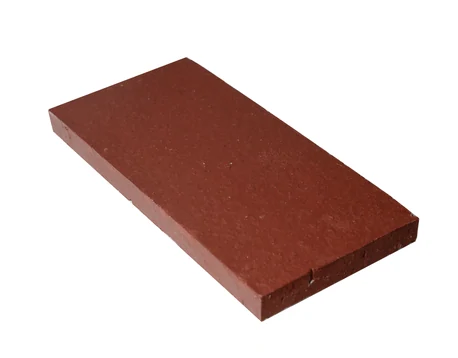

Ruby

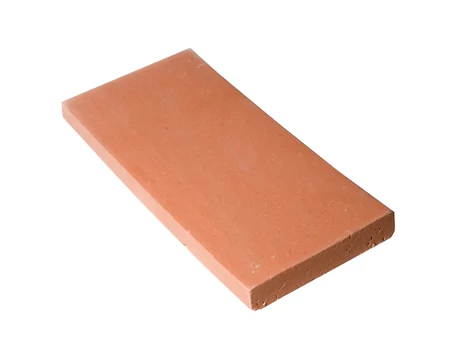

Orange

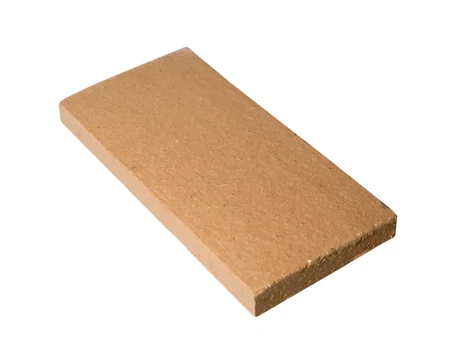

Okr
Reference projects
Technical Specifications
| Marking | Length | Width | Thickness | Weight | pcs / m2 | pcs/pal |
|---|---|---|---|---|---|---|
| DC 29/14/3 | 290 | 140 | 30 | 2,60 | 23 | 368 |
| DC 29/14/6,5 | 290 | 140 | 65 | 5,50 | 23 | 200 |
| DC 29/6,5/3 | 290 | 65 | 30 | 1,20 | 45 | 800 |
| DC 29/6,5/7 | 290 | 65 | 70 | 2,80 | 45 | 360 |
| DC 29/6,5/14 | 290 | 65 | 140 | 5,50 | 45 | 200 |
| DC 25/12/3 | 250 | 120 | 30 | 1,90 | 30 | 500 |
| DC 25/12/6,5 | 250 | 120 | 65 | 4,10 | 30 | 250 |
| DC 25/6,5/3 | 250 | 65 | 30 | 1,00 | 52 | 900 |
| DC 25/6,5/6 | 250 | 65 | 60 | 2,00 | 52 | 500 |
| DC 25/6,5/12 | 250 | 65 | 120 | 4,10 | 52 | 250 |
Brick paving ties
Treadle weave (half weave)
three-quarter weave
Binding herringbone
Block weave of eight tiles with changing direction
Block bond of two tiles with changing direction
Block weave with centre stone
Diagonal bond
